The sPECS

9pm

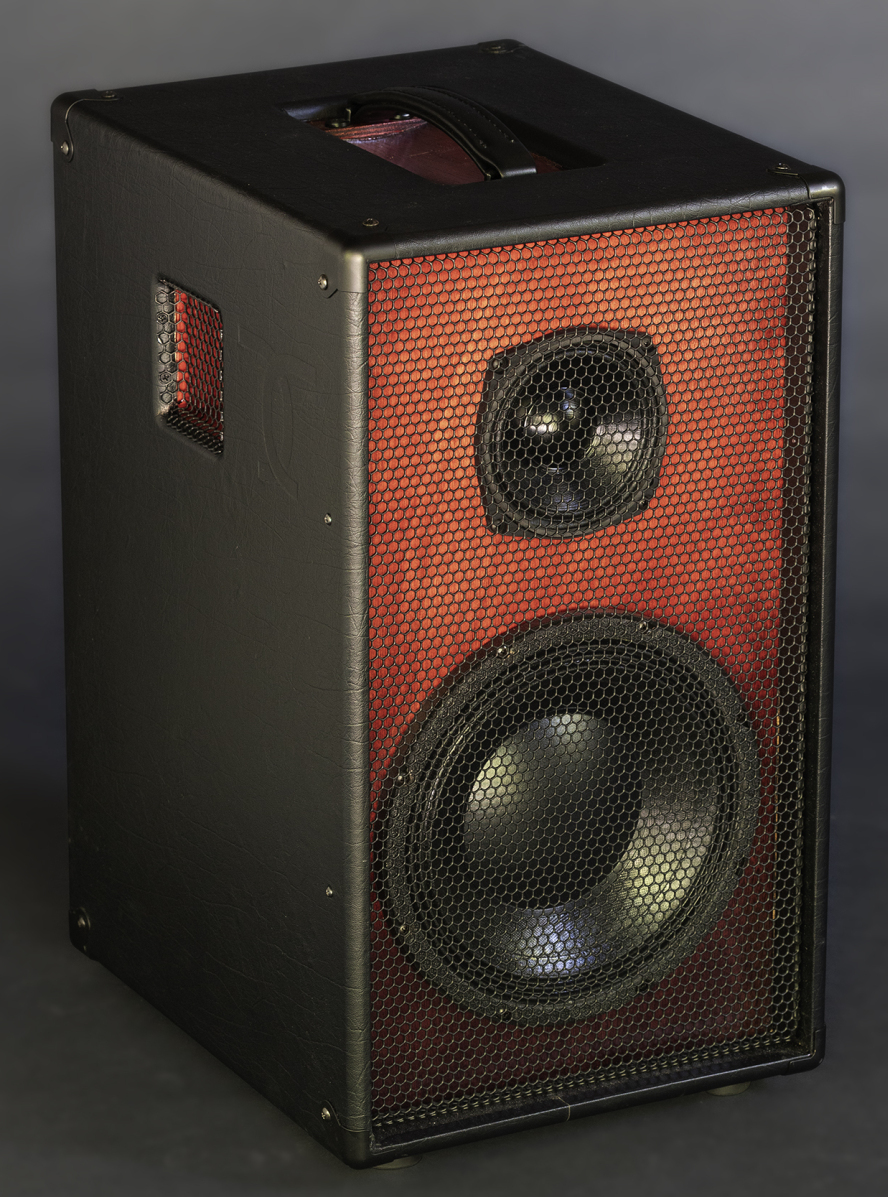

9pm — 9" woofer plus midrange



Use for: cafés, jam sessions, practice, jazz with unamplified horns, recording studios, intimate stages.



16.25" H x 11" W x 11.875" D     Approx. 29lbs weight



175 watts @ 8ohms; Sensitivity: 90db    F3: 49Hz    F6: 39Hz  Upper end: 8.5kHz

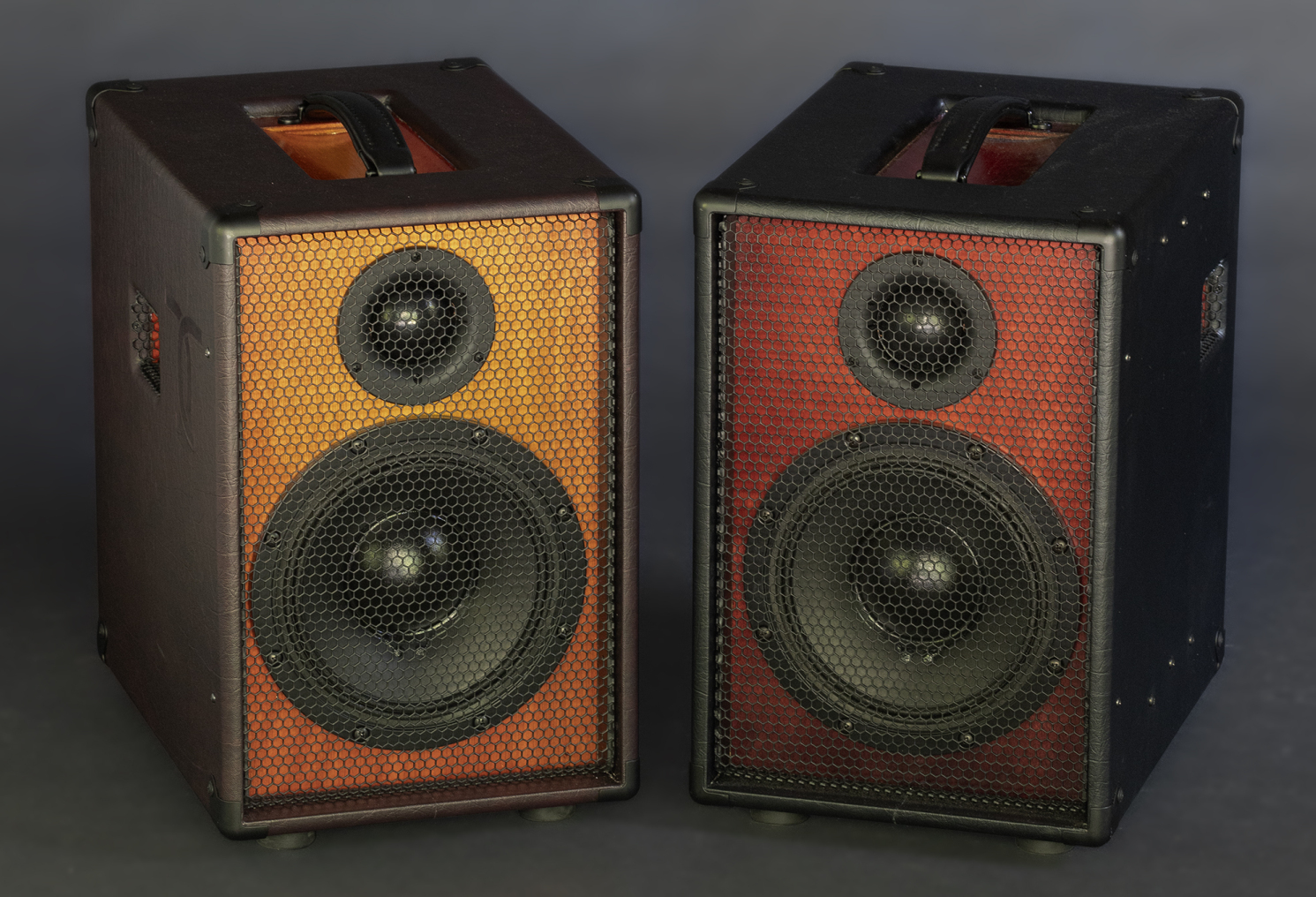

Standard look: black taurus tolex, red/black fade (cab on the right)



Two Speakon-1/4" Combo Jacks, in parallel

10pm & 10x

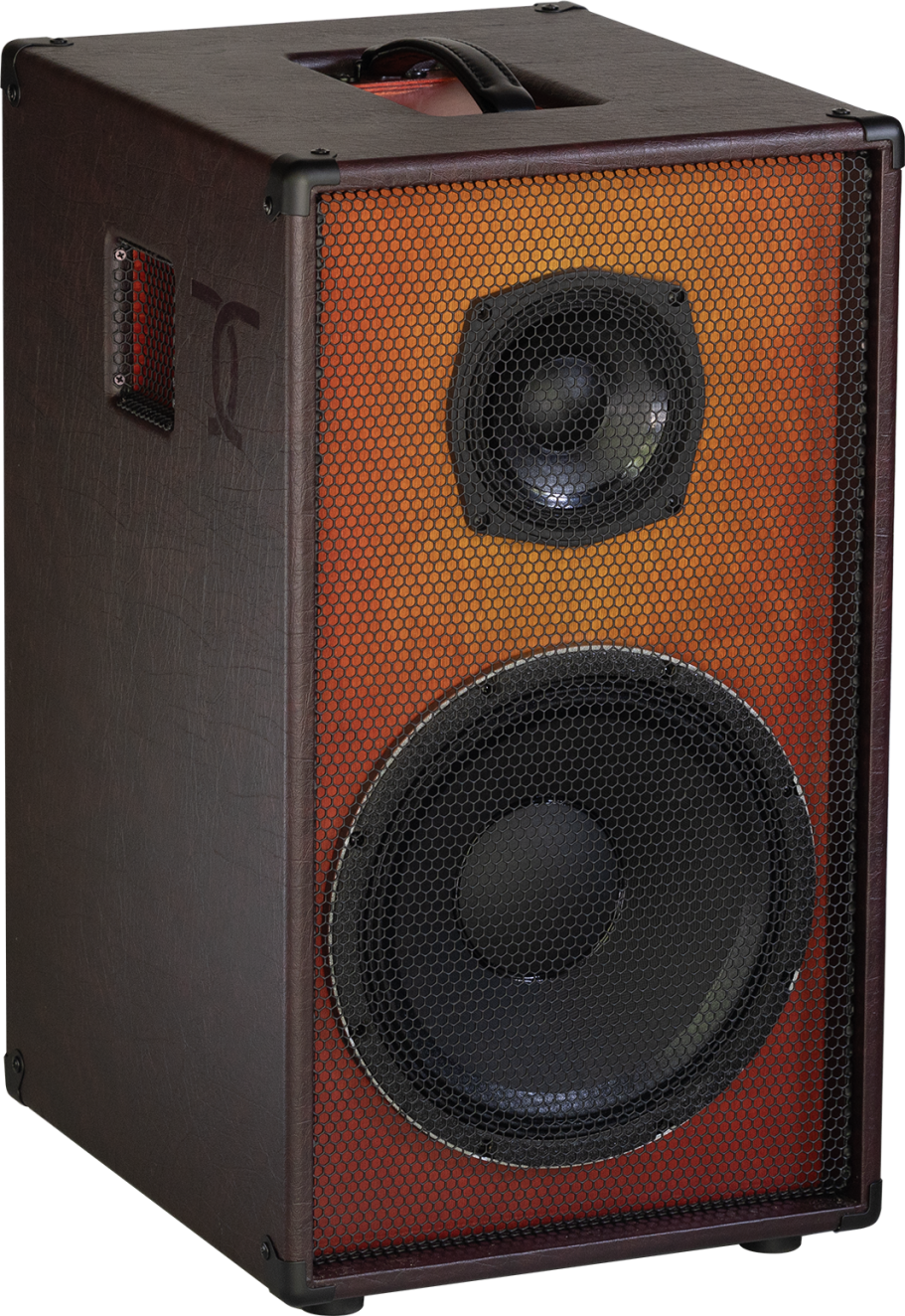

10pm — 10" woofer plus midrange



Use for: small to medium stages, in all genres.  Extremely expressive and touch-sensitive.



Shown in standard look and colors.



22.375" H x 13" W x 16.125" D     Approx. 35lbs weight



350 watts @ 8ohms. Sensitivity: 92db    F3: 52Hz    F6: 40Hz   Upper end: 6.5kHz



Standard look: black taurus tolex, red/black fade



Two Speakon-1/4" Combo Jacks, in parallel

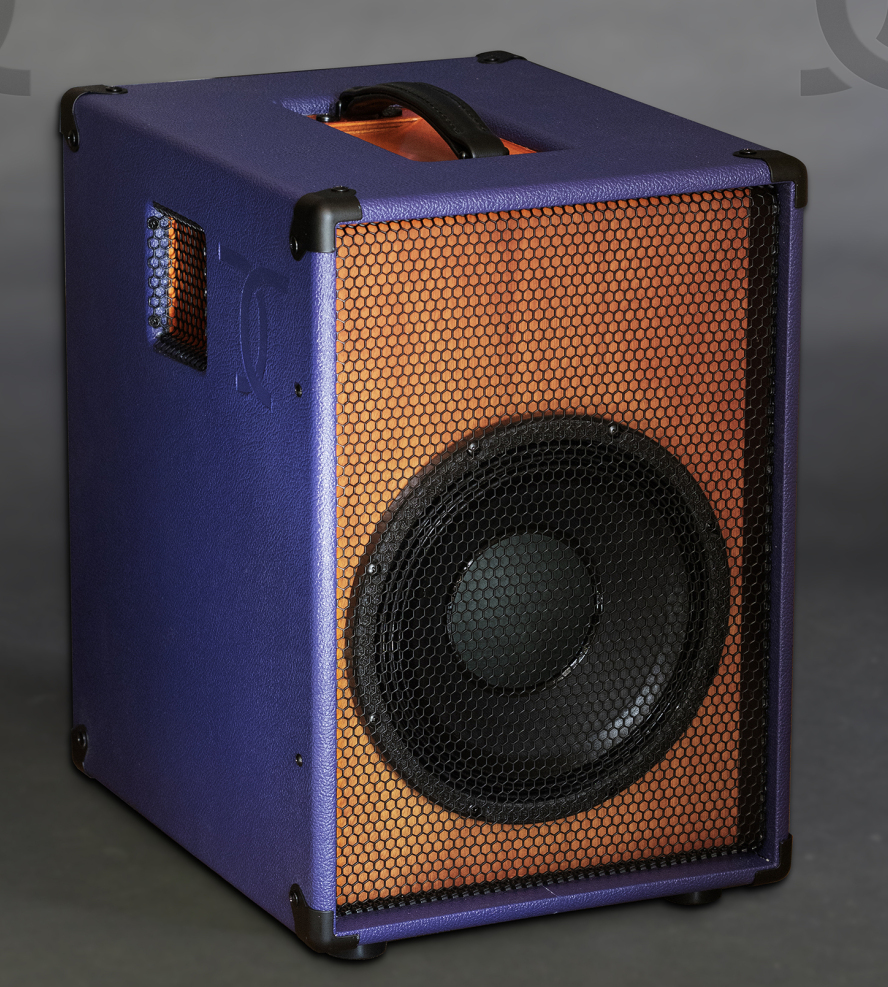

10x — 10" woofer, special design



Use for: small to medium stages, in all genres. Stack with 10pm for a "play anywhere" stage volume and impact. More conventional tone, but Trudeep depth and authority.



18.25" H x 13" W x 16.125" D     Approx. 26lbs weight



350 watts @ 8ohms. Sensitivity: 94db    F3: 59Hz    F6: 46Hz   Upper end: 3.6kHz



Shown in custom look



Two Speakon Combo-1/4" Jacks, in parallel

12am

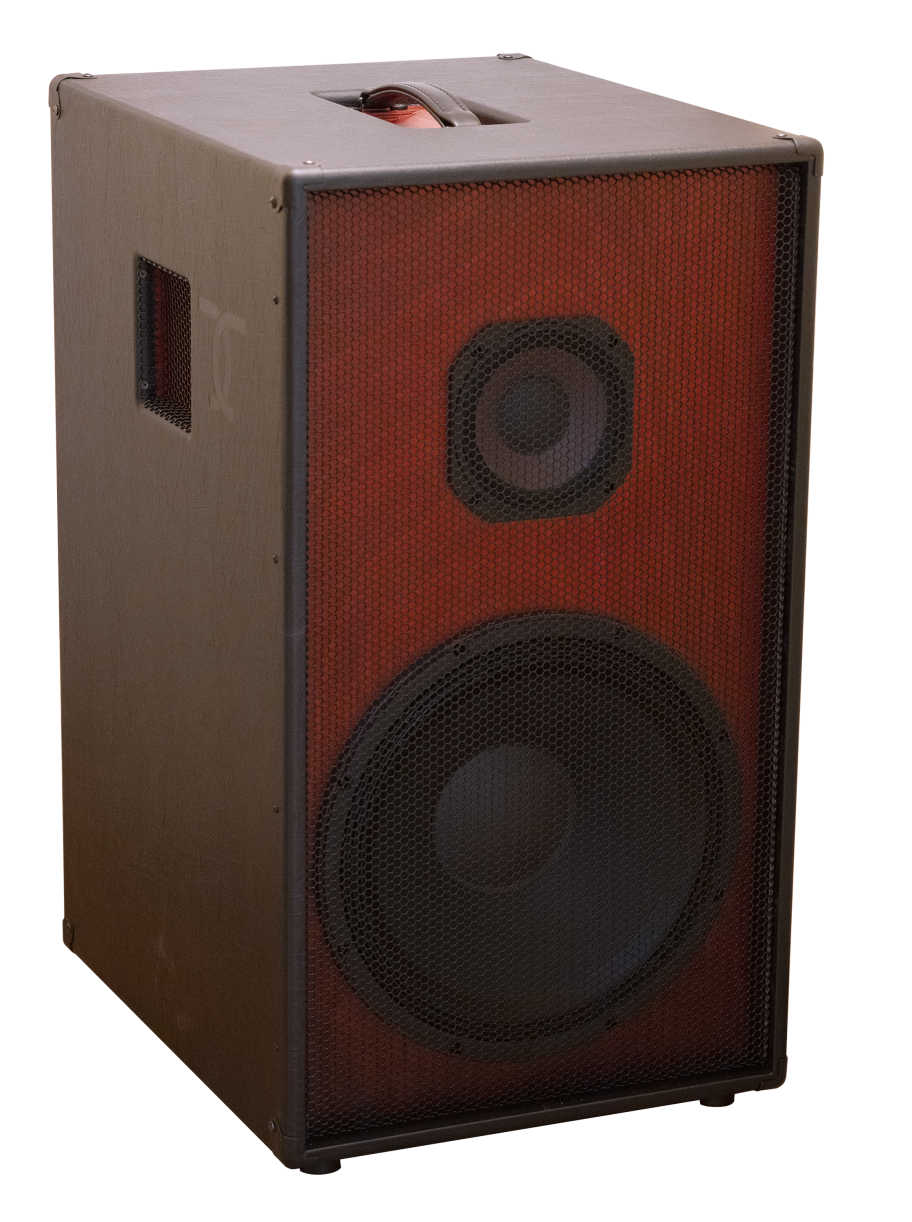

12am — 12" woofer and midrange



Use for: medium to larger stages, in all genres. With good FOH, this should be all you need for stage sound. Provides the percussive impact of a Trudeep  10" Stack in a single cabinet.



26.375" H x 15.25" W x 17.75" D     Approx. 48lbs weight



400 watts @ 8ohms. Sensitivity: 95db    F3: 47Hz    F6: 38Hz   Upper end: 8kHz



Shown in custom wine/sunset look



Two Speakon Combo-1/4" Jacks, in parallel

Stacks

Two 9pm's stacked



Incredibly deep and percussive for a stack that's less than 3ft/1m high. Equals the output of one 10pm, for use on small stages, or with loud bandmates.



Take one for coffee houses and accoustic jazz. Take both for loud music in smaller spaces.



Options include matched continuous fades and other custom tweaks to the look.

10pm/10pm stacked

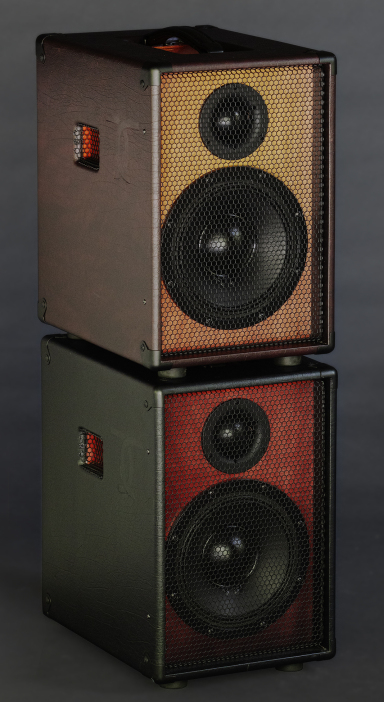

10pm/10x (shown on the left)

10x/10x



Double the loudness and percussive attack with two 10pm's stacked.



This combination will serve from medium to larger stages, even outdoor stages.



Take a single 10pm for regular gigs and the stack for when you need to dial up something extra.

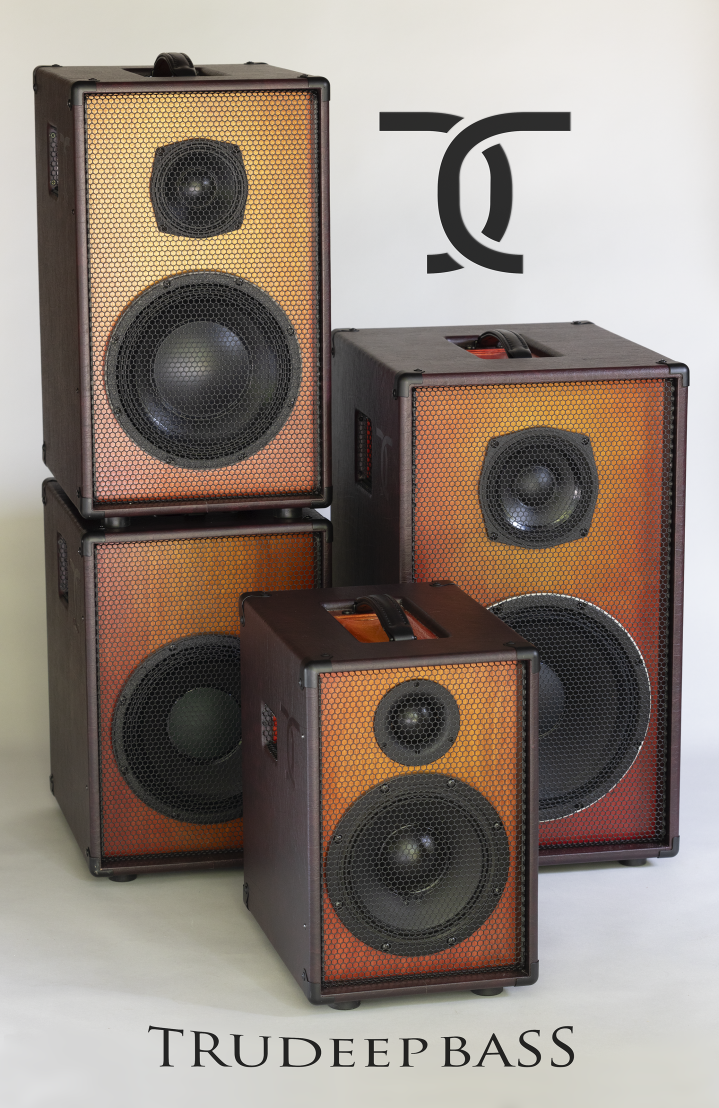

Shown with 9pm stack on the left, and 10pm stack on the right. All custom options available for the stack. 10x stack, not shown.

Construction

Fine joinery, premium materials. Lightweight marine plywood with nice grain patterns. Interior birch plywood vents are precision cut, bent, and fiberglass reinforced.



Integral bracing for a rigid cab, essential for low-end reproduction.



Audio-quality electronic components, with iso-elastic mounts in their own enclosures. Point-to-point handwired. All tested for QA/QC.



All finishes water-based, from transparent dyes to 7 layers of acrylic clearcoat on colored woods.
